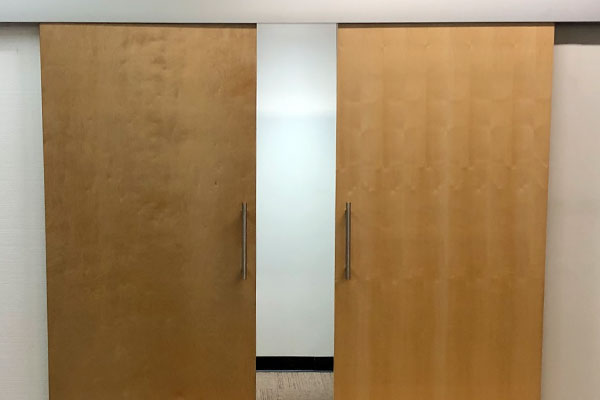

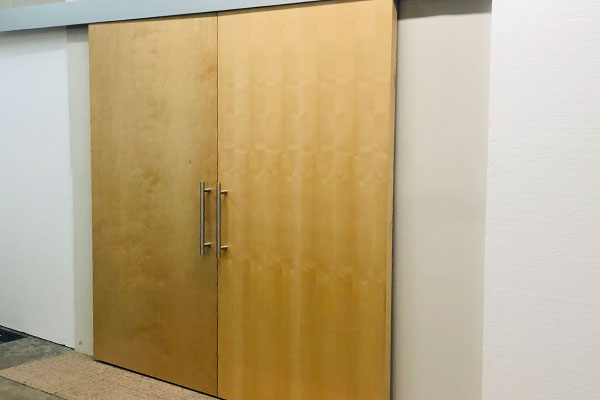

Bi-Parting | High-Performance Sliding Door Systems

Our bi-parting high-performance sliding door system is designed for large, stylish openings with a space saving low maintenance design. It can be recessed with sidelites or surface mounted with optional sidelites. This system is used in the medical, commercial & educational environments.

ModTrax™

Delivering Durable, Reliable, and Cost Effective Sliding Door Systems



Our Bi-Parting Sliding Door System comes with a pre-assembled track set to the clear opening for easy installation. Available with wood, aluminum, or laminate doors, wood stile, and rail with glass options. Fits any 1¾” door manufacture. The system comes standard with soft closers so the doors can function independently. We offer a synchronized option allowing both doors to open and close simultaneously.

Bi-Parting Slider Features:

  • Pre-assembled track system set to the clear opening
  • Soft closers that are removable without removing or readjusting the door
  • Ball bearing rollers & guides
  • Fits any door manufacture, endless door & hardware options
  • Custom heavy-duty brackets & door stops
  • Active safety features & anti-vibration hardware
  • 300-pound load capacity per door
  • Over 150,000 cycle tested soft closers

“Do not Compromise on the Quality and your customers will not negotiate on the price”
– Warren Buffett

Contact us for more info or to set up a product knowledge class.

Ask about our ModTrax™ Care Plan.

Standard System Features

  • Pre-assembled track set to the clear opening
  • Aluminum case opening with integrated permitter gaskets
  • (2) adjustable, removable soft closers set into the head of the track
  • (2) independent aluminum roller guides
  • (4) 1 ¼” ball bearing nylon wheels and built in 1” trigger arm
  • (2) custom heavy duty hanger brackets,
  • (2) 2” x 2¼” heavy duty aluminum door stops with dual rubber bumpers
  • (1) 7/8” concealed ball bearing floor guide
  • (1) 1” aluminum track to be concealed in bottom of door
  • (2) active safety features
  • Anti-vibration hardware, gaskets, shims & instructions

Options

  • ModTraxTM Care Plan
  • Recessed into the cavity of the wall with sidelites
  • Synchronized: allowing both doors to open and close
  • Custom sidelites & transoms
  • Auto door gasket at the bottom of the door
  • Enhanced gaskets
  • Custom design systems
  • ADA compliant hardware
  • Limitless glazing options/blinds/white boards

Benefits

  • Space saving
  • Soft closing
  • Endless clear opening sizes
  • Pre-assembled track
  • Pre-drilled track & jamb
  • Heavy-duty ball bearing rollers & guides
  • Independent removable soft closers
  • Active safety features
  • Easy installation
  • Low maintenance

Door Manufacturers

  • Fits any 1 ¾” commercial interior door
  • Ability to match hinge doors identically
  • Aluminum stile & rail doors
  • Wood stile & rail doors
  • Laminates/formica
  • Acrovyn, VT, Edger’s, Masonite
  • Custom doors
  • Oversized doors

Hardware Options

  • Flush pulls
  • Surface pulls
  • Privacy locks (with or without indicator)
  • Self-locking, self-latching mortise
  • Single action egress
  • Surface pulls with mortise lock

ModTrax™

High-Performance Sliding Door Systems
